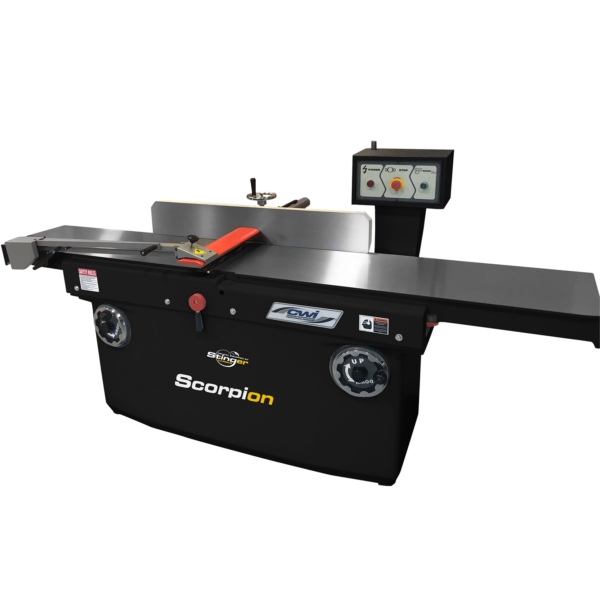

Scorpion 12″ Parallelogram Helical Jointer
$ 98.12
- Description The Scorpion CWI-J326HC is an extremely heavy built 12” wide, long bed jointer, for demanding educational, or industrial customers who require big performance and exceptional quality. The Scorpion CWI-J326HC is our latest design of our 12″ helical jointer which offers amazing features and performance, including the superior cutting performance of our Stinger 8 row carbide helical cutter head. The Stinger heavy duty 3 7/8” cutter head has 96 four-sided convex edge carbide knives set on a shear angle. The 8 rows of knives provide more knife cuts per inch, better overlap of the knives for less knife marks in the wood and virtually zero tear out even on the most difficult to joint woods. The J326HC comes with a huge heavy duty enclosed welded steel stand with a large 6″ diameter dust inlet to help move high amounts of wood chips. We are really pleased to also include our lever style mobility kit, making moving the machine around the work shop a simple task. The massive 88” x 12” machined cast iron bed is one of the longest in the industry and is easily adjustable for flatness by the very accurate, easy to adjust parallelogram tables. The parallelogram table adjustment keeps the tables at optimum distance and support to the cutter head. When using a jointer, having the longest table length possible is preferred to help when machining longer boards, to give more work piece support and less chance of “cupping” or curving the long boards. Truly unique on this Scorpion jointer is the front facing hand wheels for the adjustment of both infeed and outfeed tables. This user-friendly feature allows for precise changes of table heights with simplicity and greater accuracy. To also assist with height changes the J326HC comes with an electronic digital read out which can read in metric or imperial measurements at the push of a button. The CWI-J326HC-M1 has a very powerful 5 HP (23 amp on 220 volt) single phase motor (also available with a 7.5 HP 3-Phase motor, CWI-J326HC-M2) and a magnetic safety switch with overload and under voltage protection. Included on the electrical panel, along with the digital height read out, is the push button on/off switch as well as a mushroom style safety emergency disconnect switch. The robust cast iron machined fence is almost 5 7/8” tall (150mm) and an amazing 47.25” long (1200mm) for excellent work piece support as it travels the length of the jointer bed. The fence has set stops at 90 degrees and 45 degrees and as well can be set anywhere in between for angle work. Also unique to the J326HC is the Euro style cutter head guard which is safer and easier to use than the old “pork chop” style spring loaded guards. The fence easily slides in and out on the table with simple controls. This Scorpion jointer is sure to be a fantastic addition to your workshop. Specifications: Heavy Duty Stinger 3 7/8″ Dia. Carbide Helical Cutter Head Number of Carbide knives 96 Knife Size 15mm x 15mm x 2.5mm Cutter head speed 5500 rpm Parallelogram Table Easy Adjust Front Facing Hand wheels Heavy-Duty Cast-Iron Fence Assembly Fence stops at 90 and 45 degrees Electronic Digital Table Height Euro Style Cutterhead Guard Table size 12″ x 88″ Table height 34.5″ Maximum cutting width 12″ Maximum cutting depth 1/8″ Cast Iron Fence size 5 7/8″ x 47 1/4″ Motor 5 HP, 230V, 23 Amp (also available with a 7.5 HP 3-Phase motor, CWI-J326HC-M2) Emergency Mushroom Stop Button Magnetic Safety Switch w/Overload Protection Separate On/Off Buttons Included Mobility Kit Dust Collection Chute with 6” Port Floor Space 88″ x 41″ x 48” Net Weight 825 lbs Shipping Crate Size 91″ x 33.5″ x 49″ Shipping Weight 1076 lbs (489 kg)

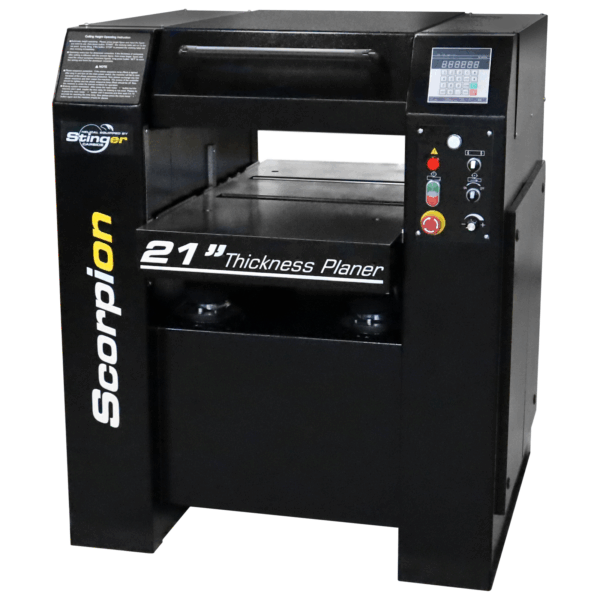

Scorpion 21″ Vari-Speed 7.5 HP Helical Thickness Planer (1-Phase)
